The Trend Mode: Equipment Reliability Analysis And Forecast

The Trend Mode in the COMPACS System is a specialized tool for equipment reliability analysis, focusing on in-depth tracking of machinery state. This mode allows vibration diagnostics experts to diagnose issues, identify potential failures, and track the root causes of equipment wear.

Unlike basic monitoring tools, Trend Mode offers unique customization options and visual displays, making it a top choice among predictive maintenance tools for industrial applications.

Key Features of Trend Mode

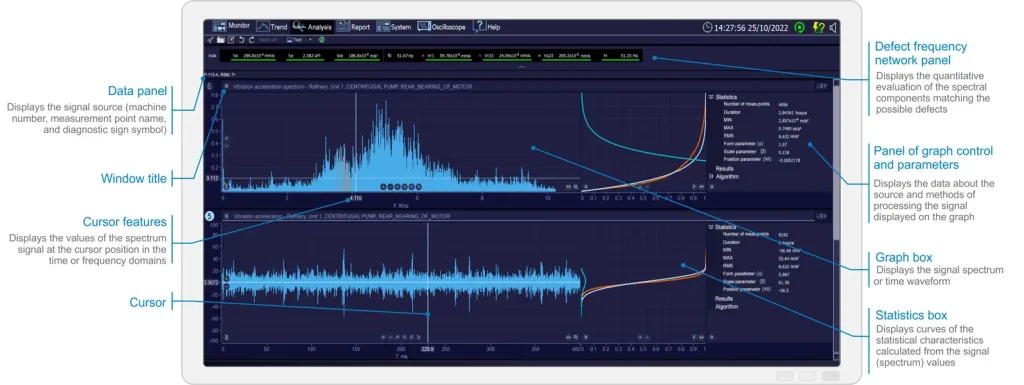

• User-Friendly Interface: The main menu, toolbar, and chart panel make navigation intuitive, even for complex data.

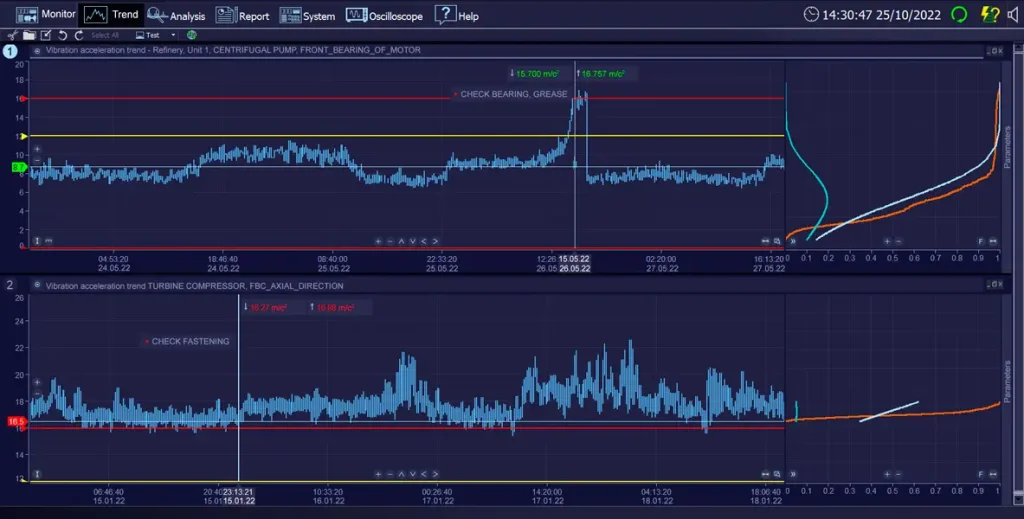

• Detailed Trend Graphs: With customizable, scalable graphs, experts can zoom in on specific machinery parts and analyze their vibration trends in real time or over time.
• Long-Term Data Storage: Records of all measured data are retained for up to 9 years, providing extensive historical data for trend analysis and prediction.

Key Benefits for Maintenance Teams

The COMPACS System enables predictive maintenance, reliability analysis, and condition forecasting for industrial equipment, minimizing maintenance costs, improving safety, and supporting reliable operations across sectors.

Expert Tips for Using Trend Mode in Vibration Diagnostics

Trend Mode is an invaluable tool for vibration diagnostics and analysis of vibration signals, offering powerful insights into equipment health. Here are some expert tips to make the most of equipment reliability analysis:

1. Monitor Critical Components:
   • Start with your equipment’s most crucial nodes, such as bearings, gearboxes, and motor drives, as these are often the primary sources of vibration issues.
   • Use Trend Mode to track vibration levels and detect deviations from standard patterns that may indicate misalignment, unbalance, or other common faults in rotating and static equipment.
2. Leverage Historical Data:
   • Access the COMPACS system’s 9-year data storage to compare current vibration patterns against historical trends. This long-term data can reveal slow-developing issues that are difficult to catch with short-term analysis.
   • Identify if there are any recurring issues at specific time intervals, which could indicate underlying maintenance or operational problems.
3. Set Critical Thresholds for Alarms:
   • Use Trend Mode’s customization to set alarm thresholds based on industry standards or historical data. This approach enables the system to alert you before a fault reaches a critical level, enabling preventive action.
   • Tailor these thresholds for specific machinery components to improve diagnostic accuracy and reduce false alarms.
4. Use Compression Options for Optimized Data Review:
   • Trend Mode supports different data compression levels, allowing you to review high-frequency data when examining recent performance or reduce data size for broader historical patterns.
   • Adjust compression settings according to your analysis goals—higher compression for long-term patterns and detailed data for recent issues.
5. Validate Maintenance Actions with Recorded Data:
   • After a maintenance or repair event, use Trend Mode to observe how vibration patterns change. This will help verify whether the corrective action was successful.
   • This verification helps refine your maintenance strategies over time, ensuring that the most effective practices are retained and repeated.

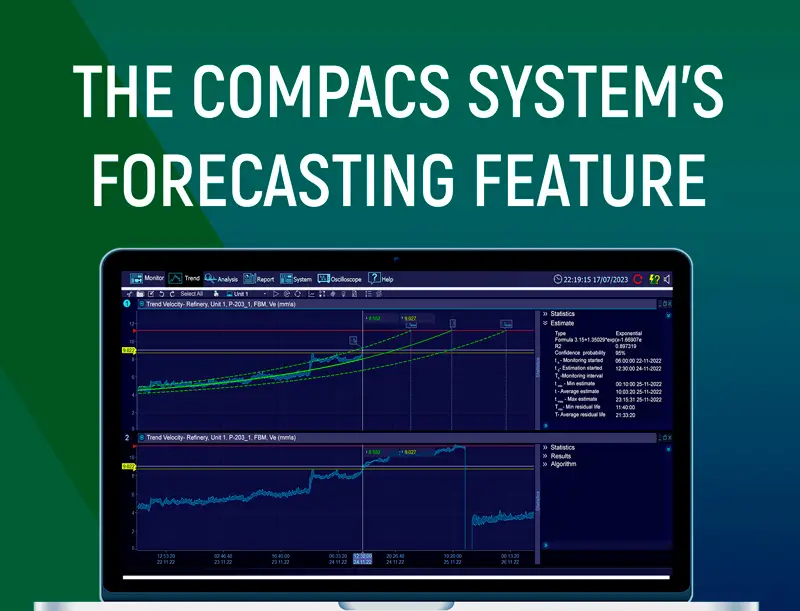

Forecasting with COMPACS: A Proactive Approach to Equipment Reliability Analysis

The forecasting feature within COMPACS enables predictive insights, allowing teams to schedule maintenance based on real-time equipment health and predicted issues. This predictive maintenance for industrial equipment capability minimizes unplanned shutdowns and optimizes resources.

Forecasting Capabilities:

• Early Detection of Issues: Track emerging issues and address them before failure occurs.
• Efficient Scheduling: Predict equipment behavior and plan maintenance during scheduled downtime, minimizing disruption.
• Cost Savings: Target the most critical issues for timely intervention, ensuring cost-effective maintenance and operation.

Why Choose COMPACS as a Predictive Maintenance Tool?

• Real-Time Reliability Analysis: Gain immediate access to historical data, enhancing diagnostics and facilitating proactive maintenance.
• Objective Insights: Track completed and pending actions across operators, using data to drive accountability and performance.
